复合辊
Composite Roller
【规格参数】 Specification
尺寸/Dimension Φ110~600mm×L1600~3000ｍｍ
温度/Temperature 50~420℃
线速度/Linear Speed 100kN/m
线压力/Linear Pressure max 250m/min
表面处理/Surface Treatment 镀硬铬/特氟龙/陶瓷/硅橡胶Hard-chrome plating / Teflon coating / Ceramic coating / Siliconrubber cladded
【产品描述】 Product Description
在复合材料的生产过程中，需要根据复合材料和粘合剂的特点而进行精确的控制温度。联净电磁感应加热辊可以在很大的温度范围内，使辊体表面温度的温差保持在±1℃以内，可使聚酯、聚乙烯、聚丙烯等高分子薄膜与铝箔、纸、铁板等异种材料**粘合，生产出各种各样的复合材料。
max

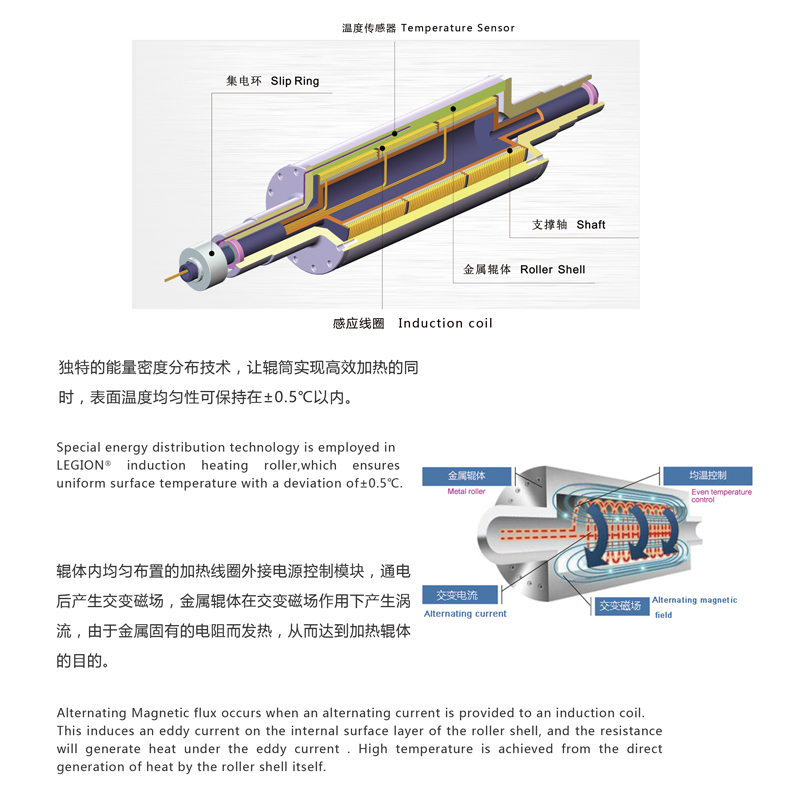

Composite materials and adhesives used in lamination require very precise temperature control.LEGION® induction heating roller maintains high-precision surface temperature uniformity within ±1℃ across a wide range of temperature. This enables perfect combining between such diversematerials as PET, PE, PP and other polymer films with aluminum foil, paper and iron sheets toproduce a variety of composite materials.
